How CIPP Lining Reduces the Cost of Major Sewer Renovations in a Private Home: A Real-World Case from Almco Plumbing

San Diego

Current maintenance, repair, replacement, and restoration of sewer and water supply systems are crucial aspects of managing a private home—especially in urban environments with increasingly demanding infrastructure standards. Over time, pipes deteriorate, leading to leaks, corrosion, and reduced capacity throughout the system. The following case study from Almco Plumbing demonstrates the advantages of CIPP (Cured-In-Place Pipe) lining technology by showcasing the restoration of a 3-inch cast iron sewer pipe without its complete replacement.

Technologies & Services

Camera Inspection
Carbide Chain Descaling
Hydro Jetting
CIPP Lining

Client’s Problem & the Solution from the Almco Plumbing Team

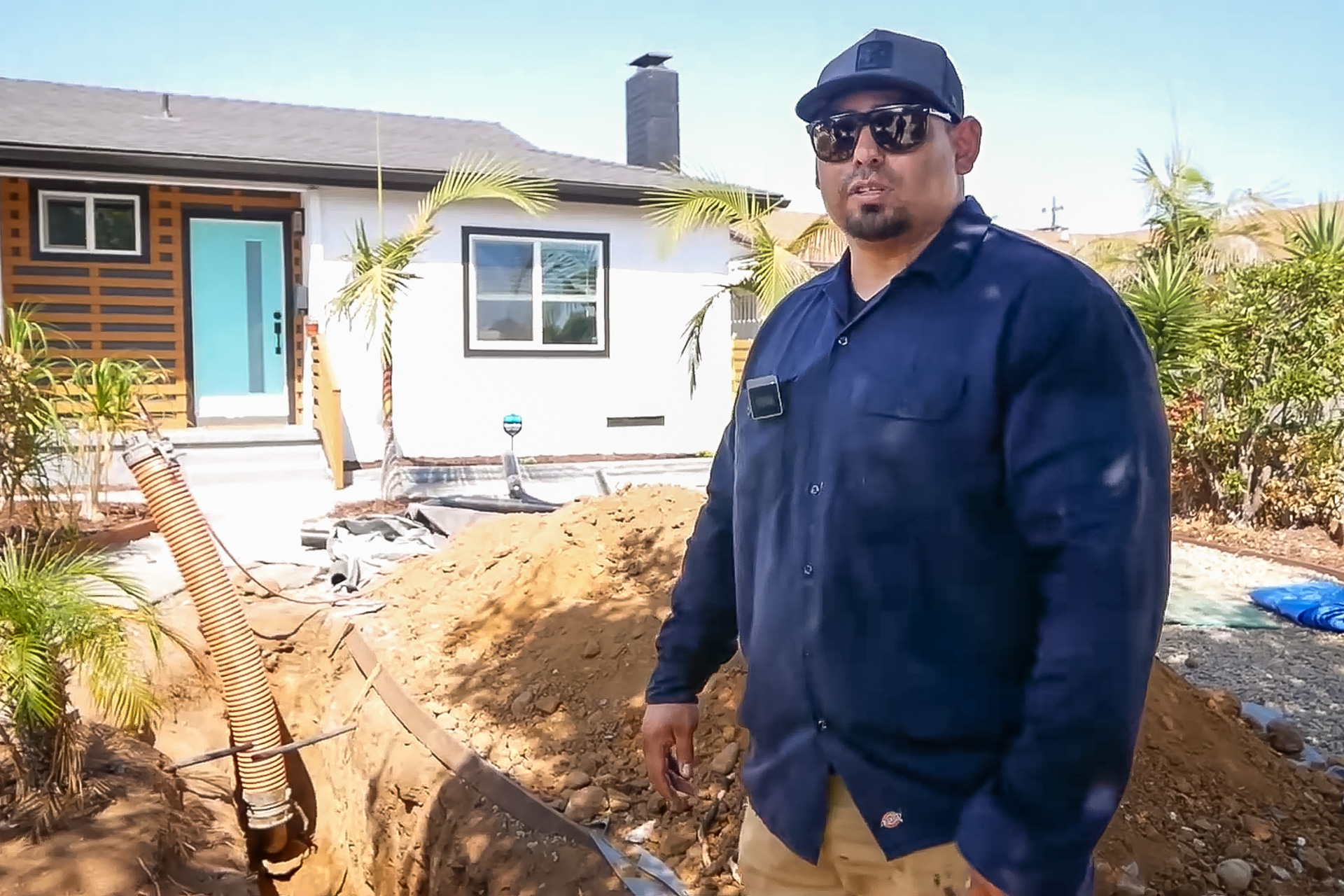

The Almco Plumbing team responded to the client’s call to restore a cast iron, 3” pipe embedded in the foundation of a private residence. To minimize the costs associated with a full-scale overhaul of the sewage system, a thorough inspection of the sewer was conducted, leading to the decision to employ CIPP lining technology.

CIPP (Cured-In-Place Pipe) lining is an innovative method that enables the rehabilitation of a pipe without the need for complete replacement. This technique involves creating a new interior lining by applying an epoxy resin onto a felt base within the damaged pipe, thereby significantly reducing both the time and expenses typically associated with traditional repair methods.

Advantages of the CIPP Lining Method

  1. Cost-Effectiveness: CIPP lining offers substantial savings compared to conventional pipe replacement methods, which usually require extensive trenching to remove old pipes and install new ones.
  2. Speed: The entire repair process, including the installation of the liner, can be completed within a matter of hours.
  3. Durability: The newly formed liner has an impressive lifespan, often reaching 50 years or more, thanks to its excellent resistance to both mechanical stresses and chemical exposure.
  4. Environmental Friendliness: This method minimizes environmental impact by eliminating the need for large-scale excavation and reducing the volume of construction debris.

Step-by-Step Repair Process Using CIPP Technology

Below are the key stages involved in restoring worn, corroded pipes.

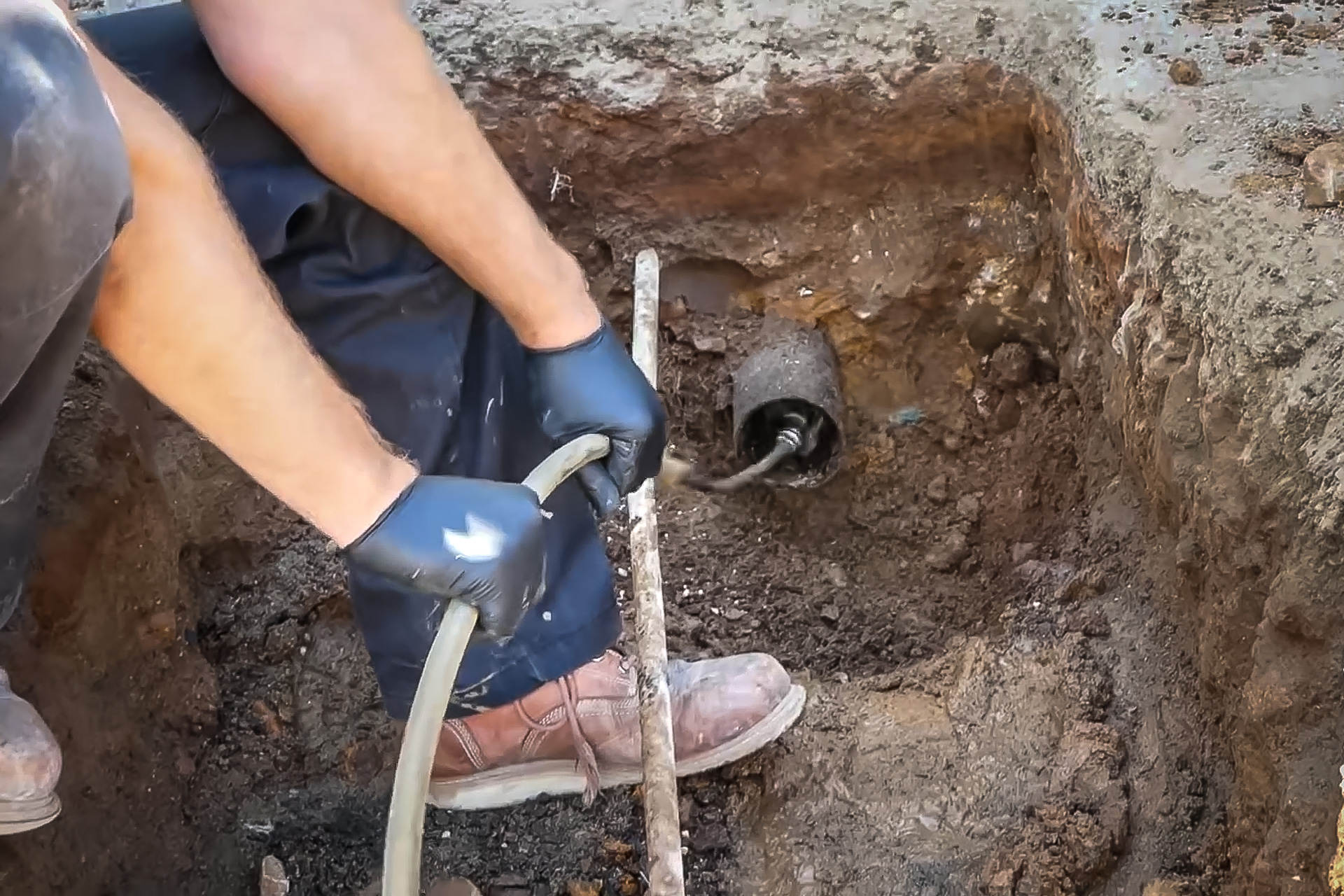

Step 1. Preparation of the Pipe’s Internal Surface

The quality of the epoxy resin’s adhesion directly depends on how thoroughly the inner surface of the pipe is prepared. This stage consists of two main steps:

This combined treatment creates the ideal conditions for installing the liner, ensuring excellent adhesion between the resin-soaked liner and the inner surface of the pipe.

Step 2. Liner Preparation

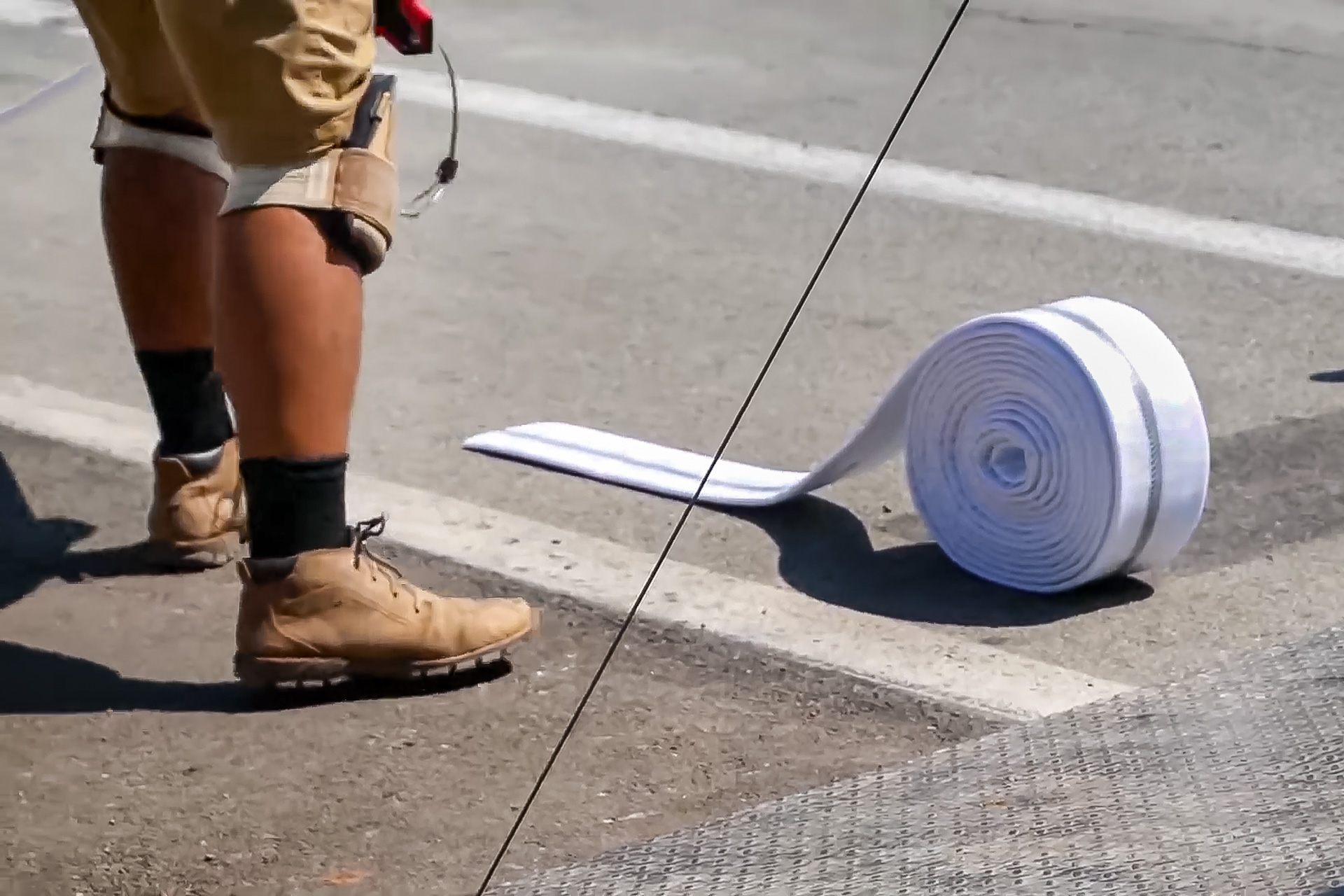

The size of the felt liner is selected according to the inner diameter of the pipe undergoing repair. It must be free of twists, folds, or compressions that could obstruct the free flow of liquids once the resin hardens.

The length of the pipe is measured, and a special felt sleeve is prepared to the required specifications. This sleeve serves both as the base for the epoxy resin and as a reinforcing material, with its fibers being saturated by the resin.

The required quantity of resin is measured by weight (using a formula to calculate the resin and hardener proportions), then thoroughly mixed and poured into the prepared sleeve. This “wetting” process saturates the liner with resin, readying it for installation.

Step 3. Installation & Curing

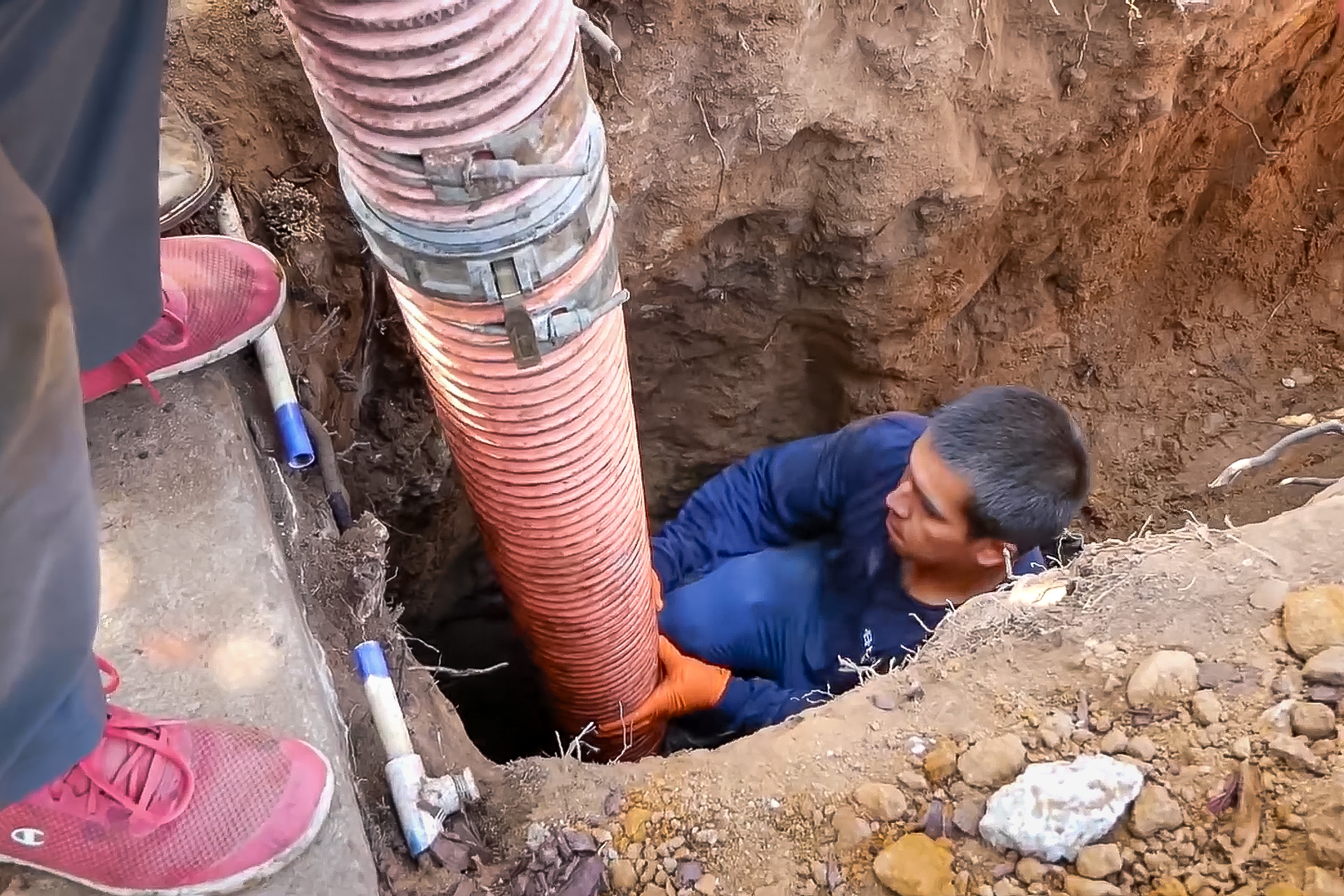

The resin-impregnated liner is loaded into the installation unit, which is connected to the repair pipe’s opening by a technological sleeve. Inside the pipe, the prepared felt liner is inverted (“turned inside out”) by high-pressure air introduced into the installation unit via a special nozzle. This inversion ensures that the epoxy resin, applied to the felt base, adheres tightly to the inner wall of the pipe.

Following the inversion, the liner is further inflated using an air bladder, into which compressed air is pumped. The resin-saturated felt fibers bond firmly with the pre-treated internal surface of the pipe. The resin typically takes about three hours to cure, after which the air bladder is removed, leaving behind a robust, high-performance epoxy coating inside the pipe.

Step 4. Quality Control

The final stage involves verifying the quality of the repair work. Video inspection equipment is used to examine the hardened liner, ensuring it adheres properly to the inner walls of the pipe.

Additionally, Almco Plumbing conducts hydraulic tests on every project to guarantee that all work meets the established standards.

Materials for CIPP Lining Technology

Materials employed in CIPP lining include polyester, vinyl ester, and epoxy resins. Their main characteristics are as follows:

CIPP lining technology stands as the most innovative method for rehabilitating damaged and worn pipelines, combining environmental sustainability, cost efficiency, and a sensitive approach to preserving the urban landscape. Its application across the utilities, industrial, and energy sectors addresses challenges related to minimizing negative impacts on the environment.

Frequently Asked Questions (FAQ)

What is CIPP Lining Technology?

CIPP lining (Cured-In-Place Pipe) is a trenchless method for rehabilitating pipelines, in which a new epoxy resin coating is created within the damaged pipe segment, thereby avoiding the need for complete pipe replacement.

What are the advantages of CIPP Lining Technology?

The primary benefits of this technology include:

  • Cost-effectiveness: Reduced expenses compared to conventional methods
  • Speed: Quick completion of work
  • Durability: A service life of up to 50 years
  • Environmental Friendliness: No excavation and minimal construction debris

How should the pipe be prepared for repair using CIPP Lining?

For a quality resin application on the internal pipe wall, thorough cleaning of the surface is essential. This involves mechanical cleaning using carbide chains and high-pressure hydro-jetting.

How is the liner installed?

The liner is impregnated with epoxy resin and installed in the pipe using air pressure. This process ensures that the resin adheres tightly to the internal surface of the pipe. The resin typically cures in about three hours.

What resins are used for impregnating the liner?

CIPP lining employs polyester, vinyl ester, and epoxy resins, each with distinct characteristics and chosen based on the operational conditions of the pipeline.

How long does the CIPP Lining repair take?

Repairs using CIPP lining can be completed within a single working day, often taking just a few hours. This is one of the key advantages over traditional pipe replacement methods, which can take several days to a week or more.

How is the quality of CIPP work verified?

Upon completion, video diagnostics are used to visually inspect the proper adhesion of the installed liner. Hydraulic tests of the rehabilitated pipeline are also conducted.

What is the cost of repair using CIPP Lining Technology?

The total cost of the work is determined on an individual basis, taking into account factors such as the complexity of the pipe’s configuration, its diameter, and other relevant details.
